Snap to intersection of entity and polar extension line
Posted: Wed Jun 11, 2025 5:03 pm
by KellySpringer
I need entities to snap to the intersection of the polar tracking line and an element. How can I enable this? See attached for clarification. I need a snap at the intersection of the yellow vertical line and the polar tracking (green dashed) line.
Re: Snap to intersection of entity and polar extension line
Posted: Fri Jun 13, 2025 7:13 pm
by QuanNguyen
Hi Kelly,
Run the "OS" command to call the "
Drawing Settings" dialog:
- at "
Entity Snaps" tab, pick to "
Intersection" option
- at "
Polar Tracking" tab, pick to "
Polar Tracking" and select/add a Polar angle.

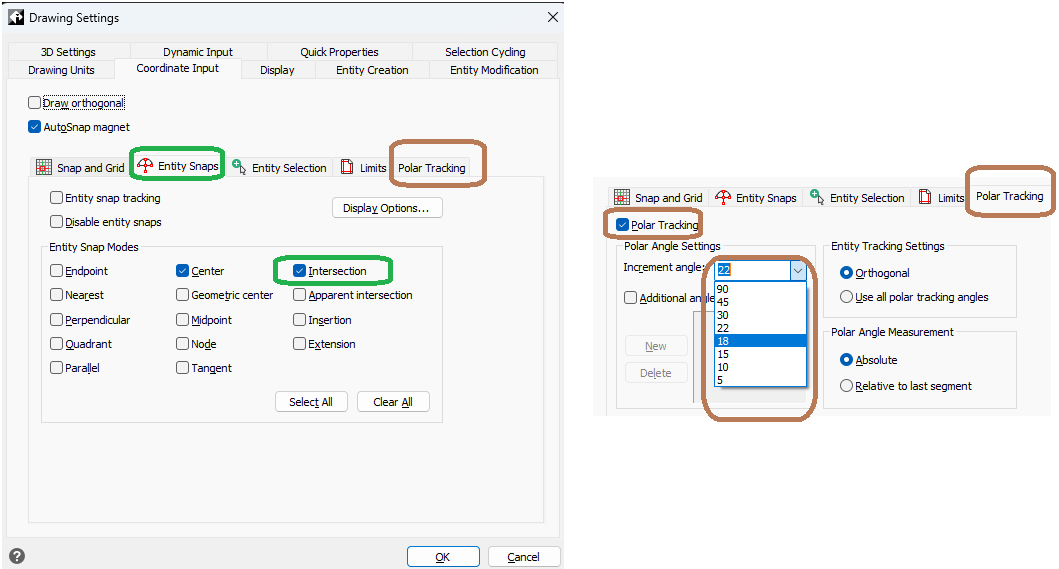

Please refer attached image below for details.
- Osnap Settings.png (41.92 KiB) Viewed 4549 times
Re: Snap to intersection of entity and polar extension line
Posted: Sun Jun 15, 2025 5:05 am
by SPirou4D
Very good Quan I didn't know that feature! Amazing ! Thks a lot..
Re: Snap to intersection of entity and polar extension line
Posted: Sun Jun 15, 2025 6:19 pm
by QuanNguyen
You're welcome, Patrick.
