Hi,
How do you find the centroid of a 2D shape (i.e centroid of a triangle)?
I have teh same question for the moment of inertia.
I have tried the command massprop but the program does not "recognize the command"
Thanks,
Re: Centroid of 2D region or flat shape
Posted: Fri Jun 17, 2022 12:22 pm
by AndresF
I also want to know how to make a region from a closed shape.
I am trying to move from autocad but these basic tasks do not let me.
Re: Centroid of 2D region or flat shape
Posted: Fri Jun 17, 2022 7:36 pm
by QuanNguyen
Hi Andres,
Please use the "
REGION" command to make a region from a closed shape.
Then use the "
MASSPROP" to view the mass properties of the region.

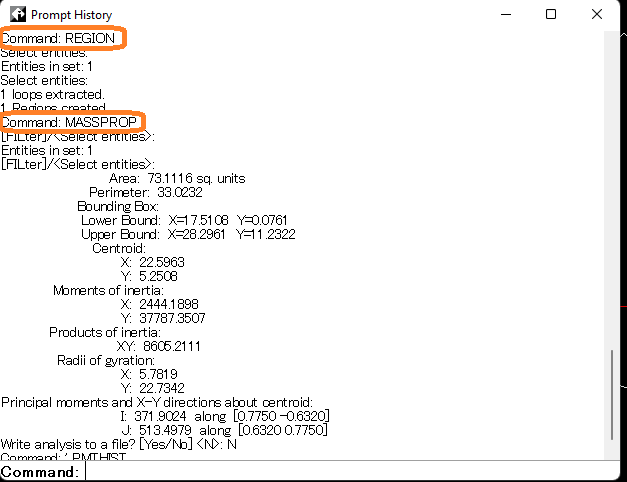

- Region_massProp.png (15.72 KiB) Viewed 11383 times
Re: Centroid of 2D region or flat shape
Posted: Mon Jun 20, 2022 12:29 pm
by AndresF
The problem is that intellicad do not recognize that command.
I paste the command line (could not paste the screen, how do you upload images?):
"Command: REGION
Unable to recognize command "REGION". Please try again."
My CMS Intellicad version is:
10.1.1346.134007.PE.VC16.x64.CMS101a
Do you think that command is included only in intellicad PE+ and not intellicad PE?
Thanks QuanNguyen,
Re: Centroid of 2D region or flat shape
Posted: Mon Jun 20, 2022 6:29 pm
by QuanNguyen
Hi Andres,
Sorry, it is ONLY available at CMS IntelliCAD
PE PLUS version
Refer this :
viewtopic.php?p=6499&hilit=massprop&sid ... bcb3#p6499
